NK Cable Systems
Control and instrumentation cables carry the commands, measurements and low-energy signals that allow electrical and process systems to operate accurately. The range includes multicore control cables and screened multipair instrumentation cables with construction options for electromagnetic protection, mechanical protection and fire performance. CCT considers signal type, conductor resistance, capacitance, screening, segregation and earthing architecture to protect signal integrity throughout the installation.
Multicore copper control cable with XLPE-insulated numbered or colour-coded cores, steel-wire armour and PVC outer sheath. Offered to IEC 60502-1 and BS 5467 for hard-wired control, interlocking and auxiliary circuits.

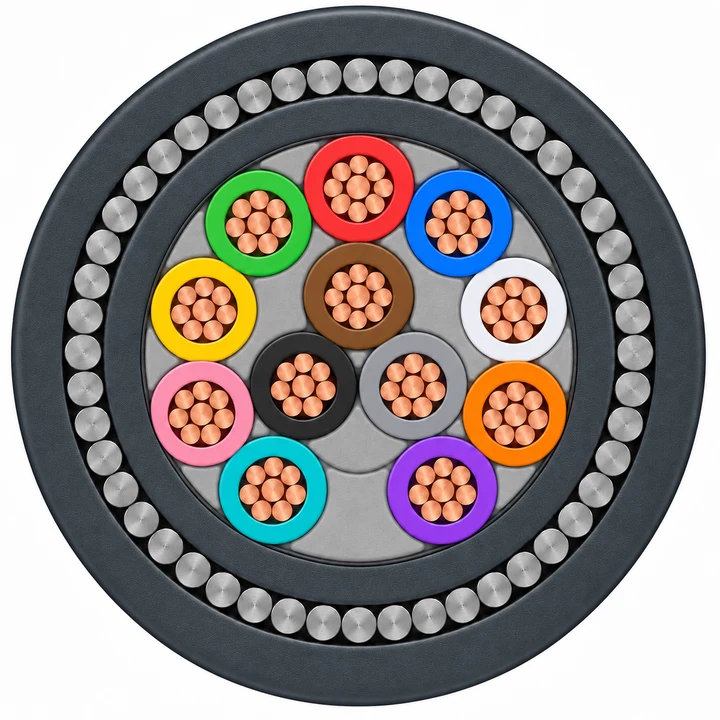

Copper multicore control cable with XLPE insulation, steel-wire armour and LSZH outer sheath. Provides mechanical protection and reduced fire effluent for critical control circuits in occupied infrastructure.
Copper multicore control cable with PVC insulation, steel-wire armour and PVC sheath to BS 6346. Suitable for conventional industrial control and signalling circuits where enhanced fire-survival performance is not required.

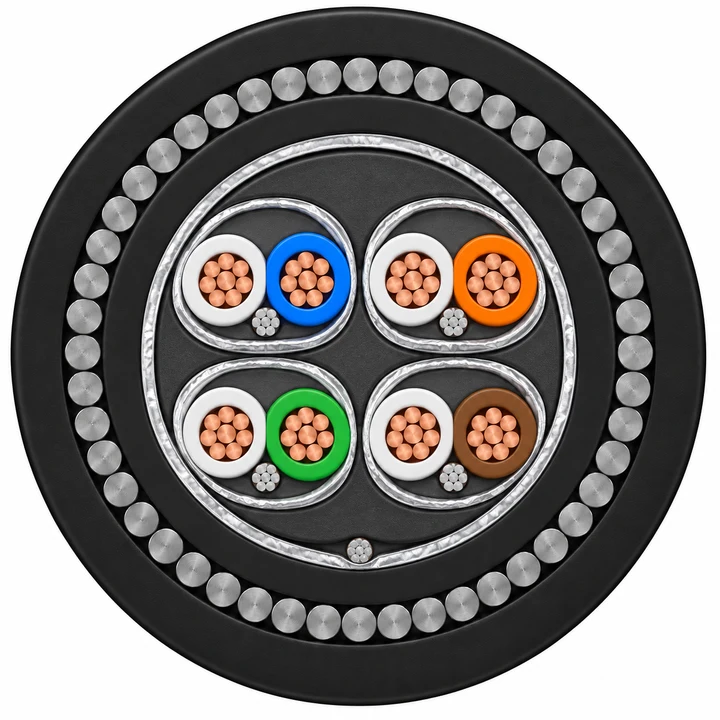

Class 2 or Class 5 copper multipair cable with PE or XLPE pair insulation, individual aluminium/Mylar pair screens, overall foil screen, tinned-copper drain wires, PVC inner sheath, GSWA and PVC oversheath. Manufactured to BS EN 50288-7 for low-energy analogue, digital and process-control signals.

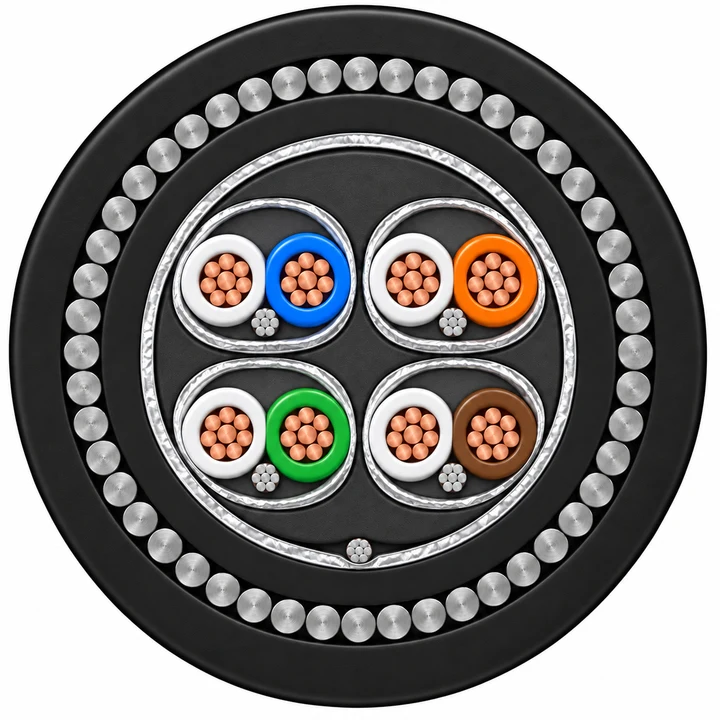

Copper multipair instrumentation cable with PVC insulation, individual and collective screening, PVC bedding, galvanised-steel-wire armour and PVC outer sheath. Designed to suppress electromagnetic coupling while providing mechanical protection in industrial environments.
CCT supports the cable package from the first electrical requirement through technical approval, procurement and delivery.
