Copper XLPE/AWA/PVC power cable — 600/1000 V
Single-core copper power cable with XLPE dielectric, aluminium-wire armour and PVC outer sheath. The non-magnetic armour is suitable for single-core AC circuits while providing mechanical protection.
NK Cable Systems
Low-Voltage Power Cables
Engineered for power distribution at 600/1000 V, NK low-voltage power cables are available with copper or aluminium conductors, XLPE insulation and a choice of armoured, unarmoured, PVC and LSZH constructions. The correct cable is determined by more than load current alone. CCT considers voltage drop, short-circuit withstand, installation depth, ambient temperature, grouping, mechanical exposure and fire-performance requirements when coordinating the cable specification.
Applications
- Main and submain power distribution
- Commercial and high-rise buildings
- Industrial plants and manufacturing facilities
- Utility and infrastructure projects
- Distribution boards, motor-control centres
- Underground and direct-buried feeders
- Cable-tray, duct and service-tunnel installations
- External plant, mechanically exposed routes
Product range

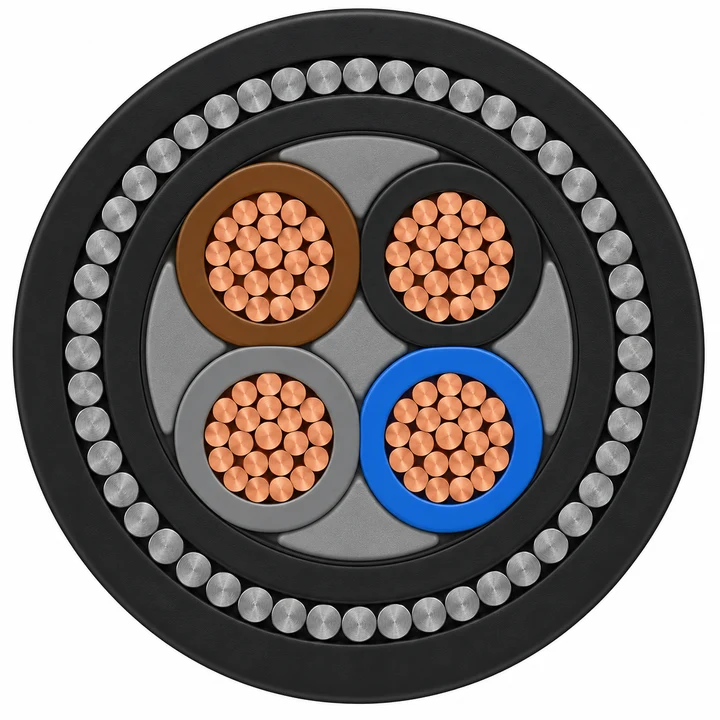

Copper XLPE/SWA/PVC power cables — 600/1000 V
Two-, three-, four- and five-core copper cables with XLPE insulation, steel-wire armour and PVC oversheath. Available to IEC 60502-1 and BS 5467 for feeders, distribution circuits, direct burial and industrial installations.

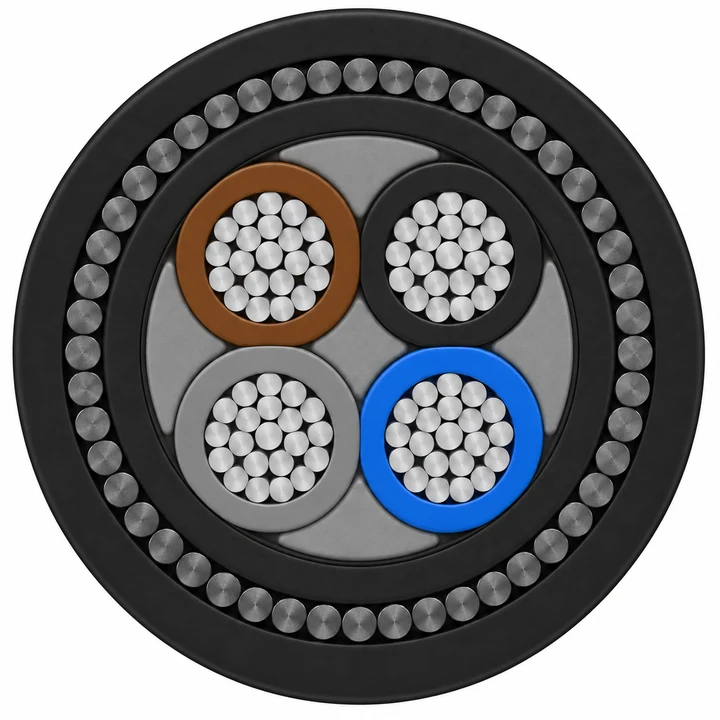

Aluminium XLPE/SWA/PVC power cables — 600/1000 V
Two- to five-core aluminium-conductor power cables with XLPE insulation, steel-wire armour and PVC sheath to IEC 60502-1. Provides lower conductor mass and material cost for larger distribution feeders.

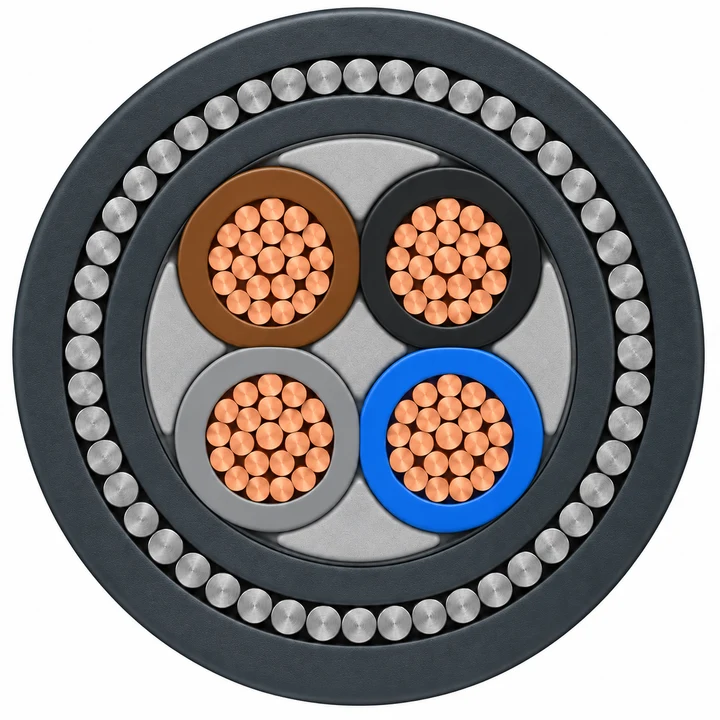

Copper XLPE/armoured/LSZH power cables — 600/1000 V
One- to five-core copper cables with XLPE insulation, metallic armour and LSZH oversheath to BS 6724. Intended for buildings, tunnels and transport infrastructure where flame propagation, smoke and acid-gas emissions must be controlled.
From specification to delivery
CCT supports the cable package from the first electrical requirement through technical approval, procurement and delivery.
